BA034-50-S0

BA034-50-S0

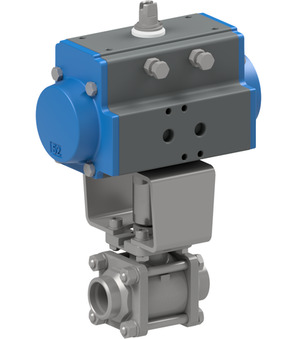

ball valve with pneumatic actuator; TA-Luft; butt weld ends; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...25bar; length 136mm; actuator PAS1005

Intrastat No.: 84818081
Country of origin: Italy
Weight: 11.5 Kg
Short Itemnumber: BA03450S0
https://www.stasto.hu/web/image/product.template/172244/image_1920?unique=87fb56f

ball valve with pneumatic actuator; TA-Luft; butt weld ends; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 50mm; pressure range 0...25bar; length 136mm; actuator PAS1005

877,30 € 877.3 EUR 877,30 €

ár kérésre

excl. tax
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25bar
Brand STASTO
Pressure range 0...25bar
Brand STASTO
Ball valve made of stainless steel BA034-50-L
BA034-50-L x 1.0 Pcs
Ball valve made of stainless steel BA034-50-L
Ball valve made of stainless steel Series BA034-L; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm
Pneumatic actuator PAS1005
PAS1005 x 1.0 Pcs
Pneumatic actuator PAS1005
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 100mm; Flange ISO5211 F07/F10; Female square 17mm; Torque at 5,5bar 42,3Nm
RI3034 x 1.0 Pcs
RI3034
Mounting bracket; F07/F05-F05; Bolt 17-10
