ball valve with pneumatic actuator BA069-38-S0
Ball valve with pneumatic actuator BA069-14-S0-A
Ball valve with pneumatic actuator BA069-14-S0-A
ár kérésre
Ball valve with pneumatic actuator BA069-38-S0-A
Ball valve with pneumatic actuator BA069-38-S0-A
ár kérésre

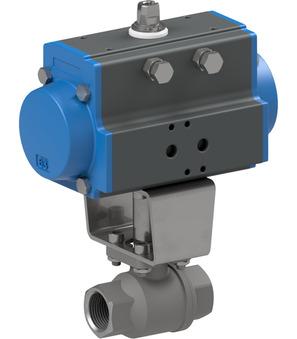

ball valve with pneumatic actuator BA069-38-S0

ball valve with pneumatic actuator series BA069-S; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/8"; nominal diameter 10mm; pressure range 0…140bar; length 55mm; actuator PAS0525

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.63 Kg
Short Itemnumber:BA06938S0
https://www.stasto.hu/web/image/product.template/236709/image_1920?unique=e260125

ball valve with pneumatic actuator series BA069-S; female thread; body, ball AISI 316; seals PTFE/FKM; single acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 3/8"; nominal diameter 10mm; pressure range 0…140bar; length 55mm; actuator PAS0525

283,10 € 283.1 EUR 283,10 €

ár kérésre

  • Valve interface Namur
  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
Female thread RP 3/8"
DN 10 mm
Length 55 mm
design
Design ATEX
pressure
Pressure range 0...140 bar
characteristics
Actuator PAS0525
