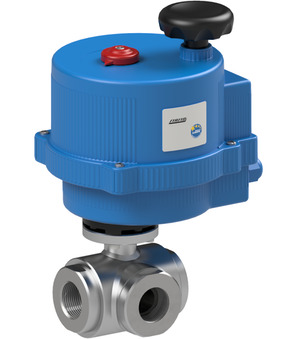

Ball valve with electrical actuator BA542-20-0L

Ball valve with electrical actuator BA542-20-0L

Ball valve with electrical actuator Series BA541, BA542; 3-way-type; Sealing on three ports; Body 1.4404 Polished, Ball 1.4404; Seals PTFE/FKM; Full bore; Medium temperature 0...+100°C; G 2"; DN 50mm; Pressure range 0…40bar; Length 144mm; Operating time 9s; Voltage 24VAC/DC; Ball L

Kugelhahn mit Elektroantrieb Serie BA541, BA542
Kugelhahn mit Elektroantrieb Serie BA541, BA542
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 11.55 Kg
Short Itemnumber: BA542200L
https://www.stasto.hu/web/image/product.template/137089/image_1920?unique=d79ab69

ball valve with electrical actuator series BA541, BA542; 3-way-type; sealing on three ports; body AISI 316L polished, ball AISI 316L; seals PTFE/FKM; full bore; medium temperature 0...+100°C; G 2"; DN 50mm; pressure range 0…40bar; length 144mm; operating time 9s; voltage 24VAC/DC; ball L

2.025,50 € 2025.5 EUR 2.025,50 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Ball
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...40 bar
DN 50 mm
Length 144 mm
Operating time 9 s
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 0...40 bar
DN 50 mm
Length 144 mm
Operating time 9 s
Voltage 24VAC/DC
Ball L
Female thread G 2"

BA542-20-0L

Documents

1 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel BA542-20-B
BA542-20-B x 1.0 Pcs
Ball valve made of stainless steel BA542-20-B
Ball valve made of stainless steel Series BA541, BA542; Bare shaft; 3-way-type; Female thread; Full bore; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Sealing on three ports; Medium temperature -20...+170°C; G 2"; Nominal diameter 50mm; Pressure range 0...40bar; Length 144mm; Ball L; Flange ISO5211 F07; Square 17mm
Electrical actuator VB060-0E9-Q17
VB060-0E9-Q17 x 1.0 Pcs
Electrical actuator VB060-0E9-Q17
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 17mm; Voltage 24VAC/DC; Protection class IP67
