BA580-34-S0-A

BA580-34-S0-A

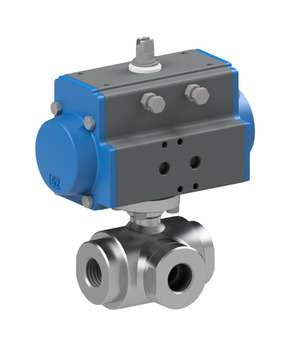

Ball valve with pneumatic actuator; ATEX II 2 G/D T4; 3-way-type; Ball is sealed on all sides; Body 1.4404 Polished; Ball 1.4404; Seals MPTFE/FKM; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+170°C; Female thread 3/4"NPT; Nominal diameter 20mm; Pressure range 0...100bar; Length 92mm; Actuator PAS0855; Ball L; ATEX-design

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.77 Kg
Short Itemnumber: BA58034S0A
https://www.stasto.hu/web/image/product.template/142348/image_1920?unique=3c5fac2

ball valve with pneumatic actuator; 3-way-type; ball is sealed on all sides; body AISI 316L polished; ball AISI 316L; seals PTFE; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+160°C; female thread 3/4NPT"; nominal diameter 20mm; pressure range 0...40bar; length 92mm; actuator PAS0855; ball L; ATEX-design

825,00 € 825.0 EUR 825,00 €

ár kérésre

  • Design

This combination does not exist.

Availability:
Contact Us

Share

Design ATEX
BA580-34-B-A x 1.0
BA580-34-B-A
Ball valve made of stainless steel; 3-way-type; Ball is sealed on all sides; Full bore; Body, Ball 1.4401; Seal PTFE; Medium temperature -20...+160°C; Female thread 3/4"NPT; Nominal diameter 20mm; Length 92mm; Pressure range 0-40bar; Ball L; For mounting an actuator F05/14mm; ATEX-design
Add to Cart
Pneumatic actuator PAS0855
PAS0855 x 1.0
Pneumatic actuator PAS0855
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
