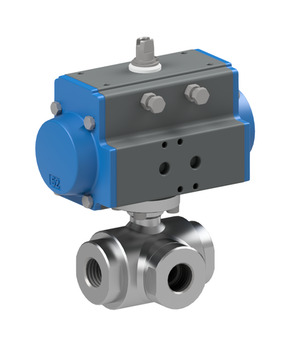

BA580-34-S0

Name: BA580-34-S0
Brand: STASTO
SKU: BA580-34-S0

Ball valve with pneumatic actuator; 3-way-type; Ball is sealed on all sides; Body 1.4404 Polished; Ball 1.4404; Seals PTFE; Single acting actuator; Full bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Female thread 3/4NPT"; Nominal diameter 20mm; Pressure range 0...40bar; Length 92mm; Actuator PAS0855; Ball L

Intrastat No.: 84818081
Country of origin: Italy
Weight: 104.81 Kg
Short Itemnumber: BA58034S0

ball valve with pneumatic actuator; 3-way-type; ball is sealed on all sides; body AISI 316L polished; ball AISI 316L; seals PTFE; single acting actuator; full bore; control pressure 5,5...8bar; medium temperature -20...+160°C; female thread 3/4NPT"; nominal diameter 20mm; pressure range 0...40bar; length 92mm; actuator PAS0855; ball L

On request

This combination does not exist.

Availability:

No Specifications

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

CAD / 3D

CADSTEP_BA58034S0.stp

Download

BA580-34-B x 1.0

BA580-34-B

Ball valve made of stainless steel; 3-way-type; Ball is sealed on all sides; Full bore; Body, Ball 1.4401; Seal PTFE; Medium temperature -20...+160°C; Female thread 3/4"NPT; Nominal diameter 20mm; Length 92mm; Pressure range 0-40bar; Ball L; For mounting an actuator F05/14mm

Add to Cart

PAS0855 x 1.0

Pneumatic actuator PAS0855

Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 28,7Nm
