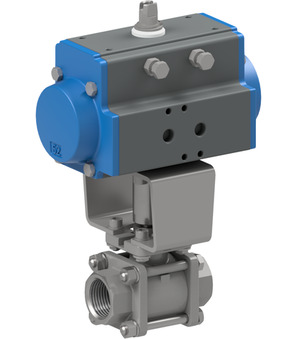

Ball valve with pneumatic actuator BA859-20-D0-01

Ball valve with pneumatic actuator BA859-20-D0-01

Ball valve with pneumatic actuator Series BA859-D0-01; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0-25bar; Length 136mm; Actuator PAD085; Mounting kits Stainless steel

Intrastat No.: 84818081
Country of origin: Italy
Weight: 8.429 Kg
Short Itemnumber: BA85920D001
https://www.stasto.hu/web/image/product.template/217611/image_1920?unique=a753443

ball valve with pneumatic actuator series BA859-D0-01; female thread; body, ball AISI 316; seals PTFE-fibre-glass-reinforced/FKM; double acting actuator; control pressure 5,5...8bar; medium temperature -20...+160°C; RP 2"; nominal diameter 50mm; pressure range 0-25bar; length 136mm; actuator PAD085; mounting kits stainless steel

989,50 € 989.5 EUR 989,50 €

ár kérésre

excl. tax
  • Female thread
  • DN
  • Length
  • Pressure range
  • Actuator
  • Brand

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
All specifications (5)
Pressure range 0...25 bar
Female thread RP 2"
DN 50 mm
Length 136 mm
Brand STASTO
BA859-20-L
BA859-20-L x 1.0 Pcs
BA859-20-L
Ball valve made of stainless steel Series BA859; Full bore; Three-parts type; Female thread; Body, Ball 1.4408; Seals PTFE-Fibre-glass-reinforced/FKM; Medium temperature -20...+160°C; RP 2"; Nominal diameter 50mm; Pressure range 0...25bar; Length 136mm
Pneumatic actuator PAD085
PAD085 x 1.0 Pcs
Pneumatic actuator PAD085
Pneumatic actuator Series PAD; ATEX II 2 G/D; Double acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Female square 17mm; Torque at 5,5bar 96Nm
ATE0705 x 1.0 Pcs
ATE0705
Mounting bridge; Material 1.4301; Flange 1 F07; Flange 2 F05; Height 60mm
IV/00278/23 x 1.0 Pcs
IV/00278/23
Bolt; 1.4305; Diameter 25mm; Height of the bolt 50mm; Male square 14mm; Height of the male square 16mm; Two flat 10mm; Two flat height 15mm
