Ball valves - automatically operated

[KL08] Tortellino Tészta és Édesipari Kft.
BADB-065-CIGV-S0
Ball valve with pneumatic rotary actuator 125 single-acting, steel body, ball 1.4301, flange PN 40 connection DN65
VRX25-0Q7-Q17-02
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 25Nm; Operating time 7sec; Flange ISO5211 F05/F07-star 17mm; Voltage 100-240V/50-60Hz; 100-350VDC; Protection class IP68; Incl. Potentiometer 1000 Ohm; ATEX II 2GD, Ex dIIB T6 Gb, Ex tbIIIC T80°C C Db
VB270M-0E50-Q22
Electrical actuator; Metal; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 270Nm; Operating time 50s; Flange ISO5211 F07/F10-star 22mm; Voltage 24VAC/DC; Protection class IP68
6DR4004-8NN30
NCS-Sensor For linear actuators Greater than 14mm; Cable length 6m
RKH-G11/2-32-4423-DFA
Ball valve with cover for actuator F05-SW17 DN32, body 1.4571, PN400 seal POM/NBR, for hydraulic fluids
BA391-20-CL-H-01
Ball valve with electrical actuator; Full bore; Two-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; Connection Rp 2"; Nominal diameter 50mm; Pressure range 0...64bar; Length 135mm; V-Ball 30-60°; Operating time 8s; Voltage 24V50-60Hz/DC; Incl. Positioner 4-20mA/0-10V; Free of oil and grease for hydrogen
BA040-100-D0-01
Flanged ball valve with pneumatic actuator; Length According to EN558−1 R14; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Double acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 100mm; Length 190mm; Actuator PAD100; Incl. 5/2-way pilot valve ABS51; Coil SCN-230V/50Hz; Without connector
BA036-112-CL-02
Ball valve with electrical actuator; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE-reinforced/FKM-perox; Medium temperature -20...+200°C; Connection RP 11/2"; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; With control ball V 30...60; Operating time 9s; Voltage 24VAC/DC; Positioner 4-20mA/0-10V
BA051-25-PH
Flanged ball valve with electrical actuator; Length According to EN558−1 R27; Body, Ball 1.4408; Stem seal 2-fold PTFE/FKM-Packing; Medium temperature -20...+160°C; DN 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Operating time 8s; Voltage 100-240VAC; Accumulator for safety position NC
BA237-40-CL-01
Ball valve with electrical actuator; Full bore; Three-parts type; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0...25bar; Length 116mm; With control ball V 30...60; Operating time 9s; Voltage 24VAC/DC; Positioner 4-20mA/0-10V
BA050-32-PL
Flanged ball valve with electrical actuator; Flange PN16; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+198°C; Steam applications Max. 15bar; Nominal diameter 32mm; Length 54mm; Operating time 8s; Voltage 24VAC/DC; NC-Accumulator for safety position
PAD085-HSS
Pneumatic actuator; Double acting; ATEX II 2 G/D; Completely made of stainless steel; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 85mm; Flange ISO5211 F05/F07; Torque at 5,5bar 96Nm; Ambient temperature -20...150°C

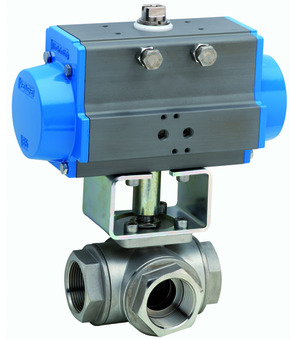

BA038-112-2S0-01
Ball valve with pneumatic actuator; Inverse direction of rotation; 3-way-type; Flow path 02 Sealing on three ports; Body, Ball 1.4401; Seals PTFE; Single acting actuator; Reduced bore; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Pressure range 0...64bar; G 11/2"; Nominal diameter 32mm; Length 125,8mm; Actuator PAS1155; Ball T
VS100-0Q15-Q22-01
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 100Nm; Operating time 15sec; Flange ISO5211 F07/F10-star 22mm; Voltage 100-240V/50-60Hz; 100-350VDC; Protection class IP68; Incl. Potentiometer 1000 Ohm
BA050-50-T0
flanged ball valve with pneumatic actuator; flange PN16; housing, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator; NO; control pressure 5,5...8bar; medium temperature -20...+198°C; pressure range 0...15bar; nominal diameter 50mm; length 82mm; actuator PAS1155
BA261-40-S0-AH
Flanged ball valve with pneumatic actuator; Fire-Safe/Antistatik According to ATEX/TA−Luft; Body, Ball 1.4408; Seals PTFE/FKM; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 40mm; Pressure range 0-40bar; Flange PN40; Length 79mm; Actuator PAS1005; Free of oil and grease for hydrogen
BA282-50-0H-01
Flanged ball valve with electrical actuator; Metal; Flange PN16; Body, Ball 1.4401; Seals MPTFE/PTFE/FKM; Medium temperature 0...+100°C; Pressure range 0...16bar; Nominal diameter 50mm; Length 82mm; Operating time 8s; Voltage 100-240VAC; IP67

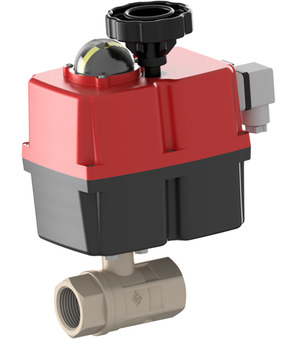

BA080-30-0R
Ball valve with electrical actuator; Female thread; Body, Ball Brass; Seals PTFE/FKM; Medium temperature 0...+100°C; RP 3"; DN 80mm; Pressure range 0-16bar; Length 188mm; Operating time 13s; Voltage 24...240VAC / 24...135VDC; Protection class IP67; LED
BA028-112-0E-C
Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/2"; DN 40mm; Pressure range 0-25bar; Length 116mm; Operating time 15s; Voltage 24VAC/DC; Actuator: Protection class IP67; CSA-Certified

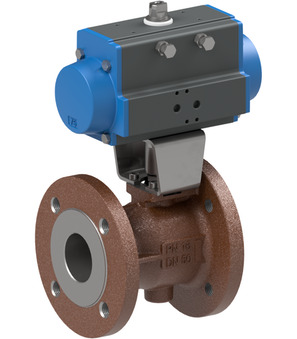

BA040-080-T0
Flanged ball valve with pneumatic actuator; Flange PN16; Body Cast iron EN-GJL-250; Ball 1.4301; Seals PTFE/NBR; Single acting actuator; Control pressure 5,5...8bar; Medium temperature -10...+120°C; Pressure range 0...16bar; Nominal diameter 80mm; Length 180mm; Length EN558-1 R14; Actuator PAS1255; Safety position NO
