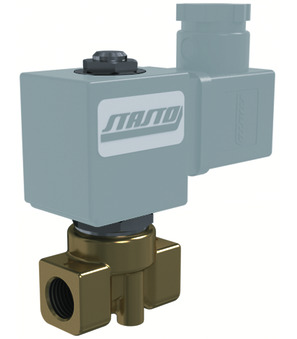

2/2-way solenoid valves - directly operated
21A3KV20-BDA08048AS-C003-32-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08048AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 48V/50Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 48V/50Hz AC Standard CE - 21A3KV20-BDA08048AS-C003-32-6
21A3ZV20-BDA08048AS-C003-31-CV20-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08048AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 48V/50Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 48V/50Hz AC With moulded PVC-cable (2 m) CE 21A3ZV20-BDA08048AS-C003-31-CV20-6
21A3KV20-BDA08048AS-C003-31-CV20-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08048AS
Coil Type BDA; Standard; Connector size 32mm; Voltage 48V/50Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 48V/50Hz AC With moulded PVC-cable (2 m) CE - 21A3KV20-BDA08048AS-C003-31-CV20-6
21A3ZV20-BDA08110CS-C003-32-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 110VDC DC Standard CE 21A3ZV20-BDA08110CS-C003-32-6
21A3KV20-BDA08110CS-C003-32-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 110VDC DC Standard CE - 21A3KV20-BDA08110CS-C003-32-6
21A3ZV20-BDA08110CS-C003-31-CV20-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 110VDC DC With moulded PVC-cable (2 m) CE 21A3ZV20-BDA08110CS-C003-31-CV20-6
21A3KV20-BDA08110CS-C003-31-CV20-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 110VDC DC With moulded PVC-cable (2 m) CE - 21A3KV20-BDA08110CS-C003-31-CV20-6
21A3ZV20-BDA08110CS-C003-32-LV-1
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 110VDC DC With integrated LED-yellow and VDR CE 21A3ZV20-BDA08110CS-C003-32-LV-1
21A3KV20-BDA08110CS-C003-32-LV-1
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08110CS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110VDC
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 110VDC DC With integrated LED-yellow and VDR CE - 21A3KV20-BDA08110CS-C003-32-LV-1
21A3ZV20-BDA08110DS-C003-32-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 110V/50-60Hz AC Standard CE 21A3ZV20-BDA08110DS-C003-32-6
21A3KV20-BDA08110DS-C003-32-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 110V/50-60Hz AC Standard CE - 21A3KV20-BDA08110DS-C003-32-6
21A3ZV20-BDA08110DS-C003-31-CV20-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 110V/50-60Hz AC With moulded PVC-cable (2 m) CE 21A3ZV20-BDA08110DS-C003-31-CV20-6
21A3KV20-BDA08110DS-C003-31-CV20-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 110V/50-60Hz AC With moulded PVC-cable (2 m) CE - 21A3KV20-BDA08110DS-C003-31-CV20-6
21A3ZV20-BDA08110DS-C003-32-LV-1
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 110V/50-60Hz AC With integrated LED-yellow and VDR CE 21A3ZV20-BDA08110DS-C003-32-LV-1
21A3KV20-BDA08110DS-C003-32-LV-1
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08110DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 110V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 110V/50-60Hz AC With integrated LED-yellow and VDR CE - 21A3KV20-BDA08110DS-C003-32-LV-1
21A3ZV20-BDA08223DS-C003-32-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 220-230V/50-60Hz AC Standard CE 21A3ZV20-BDA08223DS-C003-32-6
21A3KV20-BDA08223DS-C003-32-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-6
Connector; Connector size 32mm; Standard; Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 220-230V/50-60Hz AC Standard CE - 21A3KV20-BDA08223DS-C003-32-6
21A3ZV20-BDA08223DS-C003-31-CV20-6
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 220-230V/50-60Hz AC With moulded PVC-cable (2 m) CE 21A3ZV20-BDA08223DS-C003-31-CV20-6
21A3KV20-BDA08223DS-C003-31-CV20-6
21A3KV20
2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC 0-22bar; Pressure DC 0-16bar; Length 40mm
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-31-CV20-6
Connector; Connector size 32mm; With moulded PVC-cable (2 m); Voltage 0...250VAC/DC
To Series: 2/2-way solenoid valve Series 21A.K
Female thread DN Length Pressure AC Pressure DC Seal Medium temperature Voltage Voltage type Design Approval Type of coil 2 Type
G 1/8" 2,0 mm 40 mm 0...22 bar 0...16 bar FKM -10...+120 °C 220-230V/50-60Hz AC With moulded PVC-cable (2 m) CE - 21A3KV20-BDA08223DS-C003-31-CV20-6
21A3ZV20-BDA08223DS-C003-32-LV-1
21A3ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/8"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
BDA08223DS
Coil Type BDA; Standard; Connector size 32mm; Voltage 220-230V/50-60Hz
C003-32-LV-1
Connector; Connector size 32mm; With integrated LED-yellow and VDR; Voltage 230VAC/DC
To Series: 2/2-way solenoid valve Series 21A.Z
Female thread DN Length Pressure AC/DC Seal Medium temperature Voltage Voltage type Design Approval Type
G 1/8" 2,0 mm 40 mm 0...20 bar FKM -10...+120 °C 220-230V/50-60Hz AC With integrated LED-yellow and VDR CE 21A3ZV20-BDA08223DS-C003-32-LV-1
