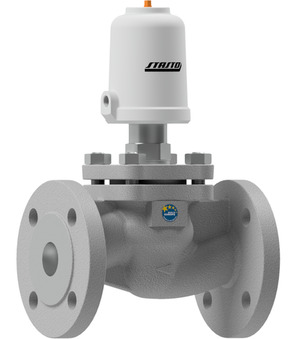

Pneumatically operated seat valve; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For liquids; Closing against flow; Medium temperature -30...+200°C; DN 40mm; Operating pressure 0...12bar; Control pressure 5,6...10bar; Diameter Actuator 80mm; High temperature design
Country of origin: Germany
Short Itemnumber: SE2440ST8302
pneumatically operated seat valve; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for liquids; closing against flow; medium temperature -30...+200°C; DN 40mm; operating pressure 0...12bar; control pressure 5,6...10bar; diameter actuator 80mm; high temperature design; incl. electrical position indicator with 2 microswitch - cable bushing
| Design | ATEX |
SE24-40-ST83-02
