Seat valves - pneumatically operated

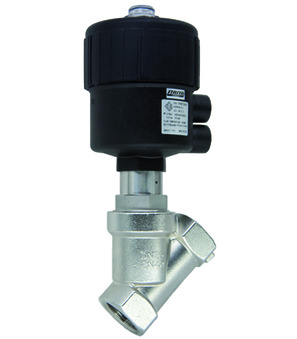

Pneumatically operated seat valve Series 21IA.GC
NC; Body Stainless steel 1.4408; Seal PTFE; Female thread; For gaseous media and liquids; Closing against flow; Medium temperature -40...+180°C
Data sheets, CAD files and further documents are available with the respective variant.
42Articles
Store guide
Other series
Pneumatically operated seat valve Series SE01-RT
Pneumatically operated seat valve Series SE02-RT
Pneumatically operated seat valve Series SE03-RT
Pneumatically operated seat valve Series SE01-BT
Pneumatically operated seat valve Series SE02-BT
Pneumatically operated seat valve Series SE03-BT
Pneumatically operated seat valve Series 21IA.GC
Pneumatically operated seat valve Series 21IA.GA
Pneumatically operated seat valve Series SE01-ST
Pneumatically operated seat valve Series SE02-ST
Pneumatically operated seat valve Series SE03-ST
Pneumatically operated seat valve Series SE06-GE
Pneumatically operated seat valve Series SE07-GE
Pneumatically operated seat valve Series SE08-GE
Pneumatically operated seat valve Series SE09-GT
Pneumatically operated seat valve Series SE23-ST
Pneumatically operated seat valve Series SE24-ST
Pneumatically operated seat valve Series SE25-ST
Pneumatically operated seat valve Series SE10-RT
Pneumatically operated seat valve Series SE11-RT
Pneumatically operated seat valve Series SE12-RT
Pneumatically operated seat valve Series SE13-RT
All prices exclude tax.
Grundversion
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
| 21IA4T15GC2 | G 1/2" | 15 mm | 0...16 bar | 4...10 bar | 346,30 € | ||
| 21IA5T20GC2 | G 3/4" | 20 mm | 0...10 bar | 4...10 bar | 454,00 € | ||
| 21IA6T25GC2 | G 1" | 25 mm | 0...10 bar | 4...10 bar | 546,70 € | ||
| 21IA7T32GC2 | G 1 1/4" | 32 mm | 0...7 bar | 4...10 bar | 674,20 € | ||
| 21IA8T40GC2 | G 1 1/2" | 40 mm | 0...4,5 bar | 4...10 bar | 761,60 € | ||
| 21IA9T50GC2 | G 2" | 50 mm | 0...3 bar | 4...10 bar | 897,50 € |
Varianten
| Availability | Price | Quantity | |||||
|---|---|---|---|---|---|---|---|
21IA4T15GC2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1/2" | 15 mm | 0...16 bar | 448,20 € | ||
21IA4T15GC2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1/2" | 15 mm | 0...16 bar | 458,30 € | ||
21IA4T15GC2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1/2" | 15 mm | 0...16 bar | 453,70 € | ||
21IA4T15GC2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1/2" | 15 mm | 0...16 bar | 448,20 € | ||
21IA4T15GC2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1/2" | 15 mm | 0...16 bar | 458,30 € | ||
21IA4T15GC2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1/2" | 15 mm | 0...16 bar | 453,60 € | ||
21IA5T20GC2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 3/4" | 20 mm | 0...10 bar | 555,90 € | ||
21IA5T20GC2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 3/4" | 20 mm | 0...10 bar | 566,00 € | ||
21IA5T20GC2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 3/4" | 20 mm | 0...10 bar | 561,40 € | ||
21IA5T20GC2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 3/4" | 20 mm | 0...10 bar | 555,90 € | ||
21IA5T20GC2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 3/4" | 20 mm | 0...10 bar | 566,00 € | ||
21IA5T20GC2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 3/4" | 20 mm | 0...10 bar | 561,30 € | ||
21IA6T25GC2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1" | 25 mm | 0...10 bar | 648,60 € | ||
21IA6T25GC2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1" | 25 mm | 0...10 bar | 658,70 € | ||
21IA6T25GC2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1" | 25 mm | 0...10 bar | 654,10 € | ||
21IA6T25GC2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1" | 25 mm | 0...10 bar | 648,60 € | ||
21IA6T25GC2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1" | 25 mm | 0...10 bar | 658,70 € | ||
21IA6T25GC2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1" | 25 mm | 0...10 bar | 654,00 € | ||
21IA7T32GC2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1 1/4" | 32 mm | 0...7 bar | 776,10 € | ||
21IA7T32GC2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1 1/4" | 32 mm | 0...7 bar | 786,20 € | ||
21IA7T32GC2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1 1/4" | 32 mm | 0...7 bar | 781,60 € | ||
21IA7T32GC2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1 1/4" | 32 mm | 0...7 bar | 776,10 € | ||
21IA7T32GC2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1 1/4" | 32 mm | 0...7 bar | 786,20 € | ||
21IA7T32GC2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1 1/4" | 32 mm | 0...7 bar | 781,50 € | ||
21IA8T40GC2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 1 1/2" | 40 mm | 0...4,5 bar | 863,50 € | ||
21IA8T40GC2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 1 1/2" | 40 mm | 0...4,5 bar | 873,60 € | ||
21IA8T40GC2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 1 1/2" | 40 mm | 0...4,5 bar | 869,00 € | ||
21IA8T40GC2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 1 1/2" | 40 mm | 0...4,5 bar | 863,50 € | ||
21IA8T40GC2-ABS34-BDA08223DS-C003-31-CV20-6
Specifications
|
220-230V/50-60Hz | G 1 1/2" | 40 mm | 0...4,5 bar | 873,60 € | ||
21IA8T40GC2-ABS34-BDA08223DS-C003-32-LV-1
Specifications
|
220-230V/50-60Hz | G 1 1/2" | 40 mm | 0...4,5 bar | 868,90 € | ||
21IA9T50GC2-ABS34-BDA08024CS-C003-32-6
Specifications
|
24VDC | G 2" | 50 mm | 0...3 bar | 999,40 € | ||
21IA9T50GC2-ABS34-BDA08024CS-C003-31-CV20-6
Specifications
|
24VDC | G 2" | 50 mm | 0...3 bar | 1.009,50 € | ||
21IA9T50GC2-ABS34-BDA08024CS-C003-32-LV-2
Specifications
|
24VDC | G 2" | 50 mm | 0...3 bar | 1.004,90 € | ||
21IA9T50GC2-ABS34-BDA08223DS-C003-32-6
Specifications
|
220-230V/50-60Hz | G 2" | 50 mm | 0...3 bar | 999,40 € |
