Seat valves - pneumatically operated

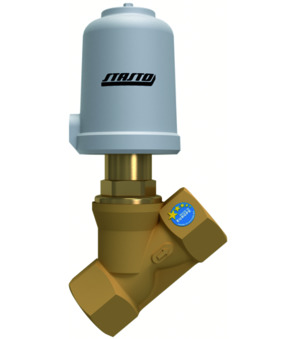

Pneumatically operated seat valve Series SE01-BT

NC; Body Brass; Seal PTFE; Female thread; For gaseous media (Steam Max. 140°C); Closing with flow; Medium temperature -30...+170°C

Data sheets, CAD files and further documents are available with the respective variant.

Other series

Pneumatically operated seat valve Series SE01-RT

Pneumatically operated seat valve Series SE02-RT

Pneumatically operated seat valve Series SE03-RT

Pneumatically operated seat valve Series SE01-BT

Pneumatically operated seat valve Series SE02-BT

Pneumatically operated seat valve Series SE03-BT

Pneumatically operated seat valve Series 21IA.GC

Pneumatically operated seat valve Series 21IA.GA

Pneumatically operated seat valve Series SE01-ST

Pneumatically operated seat valve Series SE02-ST

Pneumatically operated seat valve Series SE03-ST

Pneumatically operated seat valve Series SE06-GE

Pneumatically operated seat valve Series SE07-GE

Pneumatically operated seat valve Series SE08-GE

Pneumatically operated seat valve Series SE09-GT

Pneumatically operated seat valve Series SE23-ST

Pneumatically operated seat valve Series SE24-ST

Pneumatically operated seat valve Series SE25-ST

Pneumatically operated seat valve Series SE10-RT

Pneumatically operated seat valve Series SE11-RT

Pneumatically operated seat valve Series SE12-RT

Pneumatically operated seat valve Series SE13-RT

Choose a variant

28 Articles

All prices exclude tax.

Grundversion

					Availability	Price	Quantity
SE01-212-BT81 Specifications Control pressure 5...10 bar Medium temperature -30...+170 °C	RP 2 1/2"	65 mm	80 mm	0...6 bar	See availability	982,80 €	Quantity Details Documents — SE01-212-BT81
SE01-212-BT1251 Specifications Control pressure 5...10 bar Medium temperature -30...+170 °C	RP 2 1/2"	65 mm	125 mm	0...16 bar	See availability	1.480,50 €	Quantity Details Documents — SE01-212-BT1251
SE01-30-BT81 Specifications Control pressure 5...10 bar Medium temperature -30...+170 °C	RP 3"	80 mm	80 mm	0...4,5 bar	See availability	1.149,70 €	Quantity Details Documents — SE01-30-BT81
SE01-30-BT1251 Specifications Control pressure 5...10 bar Medium temperature -30...+170 °C	RP 3"	80 mm	125 mm	0...13 bar	See availability	1.647,40 €	Quantity Details Documents — SE01-30-BT1251

Varianten

					Availability	Price	Quantity
SE01-212-BT81-ABS31-BDA08024CS-C003-32-6 Specifications Operating pressure 0...6 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design Standard Approval CE	24VDC	RP 2 1/2"	65 mm	80 mm	See availability	1.078,60 €	Quantity Details Documents — SE01-212-BT81-ABS31-BDA08024CS-C003-32-6
SE01-212-BT81-ABS31-BDA08024CS-C003-31-CV20-6 Specifications Operating pressure 0...6 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With moulded PVC-cable (2 m) Approval CE	24VDC	RP 2 1/2"	65 mm	80 mm	See availability	1.088,70 €	Quantity Details Documents — SE01-212-BT81-ABS31-BDA08024CS-C003-31-CV20-6
SE01-212-BT81-ABS31-BDA08024CS-C003-32-LV-2 Specifications Operating pressure 0...6 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With integrated LED-yellow and VDR Approval CE	24VDC	RP 2 1/2"	65 mm	80 mm	See availability	1.084,10 €	Quantity Details Documents — SE01-212-BT81-ABS31-BDA08024CS-C003-32-LV-2
SE01-212-BT81-ABS31-BDA08223DS-C003-32-6 Specifications Operating pressure 0...6 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design Standard Approval CE	220-230V/50-60Hz	RP 2 1/2"	65 mm	80 mm	See availability	1.078,60 €	Quantity Details Documents — SE01-212-BT81-ABS31-BDA08223DS-C003-32-6
SE01-212-BT81-ABS31-BDA08223DS-C003-31-CV20-6 Specifications Operating pressure 0...6 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With moulded PVC-cable (2 m) Approval CE	220-230V/50-60Hz	RP 2 1/2"	65 mm	80 mm	See availability	1.088,70 €	Quantity Details Documents — SE01-212-BT81-ABS31-BDA08223DS-C003-31-CV20-6
SE01-212-BT81-ABS31-BDA08223DS-C003-32-LV-1 Specifications Operating pressure 0...6 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With integrated LED-yellow and VDR Approval CE	220-230V/50-60Hz	RP 2 1/2"	65 mm	80 mm	See availability	1.084,00 €	Quantity Details Documents — SE01-212-BT81-ABS31-BDA08223DS-C003-32-LV-1
SE01-212-BT1251-ABS31-BDA08024CS-C003-32-6 Specifications Operating pressure 0...16 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design Standard Approval CE	24VDC	RP 2 1/2"	65 mm	125 mm	See availability	1.576,30 €	Quantity Details Documents — SE01-212-BT1251-ABS31-BDA08024CS-C003-32-6
SE01-212-BT1251-ABS31-BDA08024CS-C003-31-CV20-6 Specifications Operating pressure 0...16 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With moulded PVC-cable (2 m) Approval CE	24VDC	RP 2 1/2"	65 mm	125 mm	See availability	1.586,40 €	Quantity Details Documents — SE01-212-BT1251-ABS31-BDA08024CS-C003-31-CV20-6
SE01-212-BT1251-ABS31-BDA08024CS-C003-32-LV-2 Specifications Operating pressure 0...16 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With integrated LED-yellow and VDR Approval CE	24VDC	RP 2 1/2"	65 mm	125 mm	See availability	1.581,80 €	Quantity Details Documents — SE01-212-BT1251-ABS31-BDA08024CS-C003-32-LV-2
SE01-212-BT1251-ABS31-BDA08223DS-C003-32-6 Specifications Operating pressure 0...16 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design Standard Approval CE	220-230V/50-60Hz	RP 2 1/2"	65 mm	125 mm	See availability	1.576,30 €	Quantity Details Documents — SE01-212-BT1251-ABS31-BDA08223DS-C003-32-6
SE01-212-BT1251-ABS31-BDA08223DS-C003-31-CV20-6 Specifications Operating pressure 0...16 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With moulded PVC-cable (2 m) Approval CE	220-230V/50-60Hz	RP 2 1/2"	65 mm	125 mm	See availability	1.586,40 €	Quantity Details Documents — SE01-212-BT1251-ABS31-BDA08223DS-C003-31-CV20-6
SE01-212-BT1251-ABS31-BDA08223DS-C003-32-LV-1 Specifications Operating pressure 0...16 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With integrated LED-yellow and VDR Approval CE	220-230V/50-60Hz	RP 2 1/2"	65 mm	125 mm	See availability	1.581,70 €	Quantity Details Documents — SE01-212-BT1251-ABS31-BDA08223DS-C003-32-LV-1
SE01-30-BT81-ABS31-BDA08024CS-C003-32-6 Specifications Operating pressure 0...4,5 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design Standard Approval CE	24VDC	RP 3"	80 mm	80 mm	See availability	1.245,50 €	Quantity Details Documents — SE01-30-BT81-ABS31-BDA08024CS-C003-32-6
SE01-30-BT81-ABS31-BDA08024CS-C003-31-CV20-6 Specifications Operating pressure 0...4,5 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With moulded PVC-cable (2 m) Approval CE	24VDC	RP 3"	80 mm	80 mm	See availability	1.255,60 €	Quantity Details Documents — SE01-30-BT81-ABS31-BDA08024CS-C003-31-CV20-6
SE01-30-BT81-ABS31-BDA08024CS-C003-32-LV-2 Specifications Operating pressure 0...4,5 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With integrated LED-yellow and VDR Approval CE	24VDC	RP 3"	80 mm	80 mm	See availability	1.251,00 €	Quantity Details Documents — SE01-30-BT81-ABS31-BDA08024CS-C003-32-LV-2
SE01-30-BT81-ABS31-BDA08223DS-C003-32-6 Specifications Operating pressure 0...4,5 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design Standard Approval CE	220-230V/50-60Hz	RP 3"	80 mm	80 mm	See availability	1.245,50 €	Quantity Details Documents — SE01-30-BT81-ABS31-BDA08223DS-C003-32-6
SE01-30-BT81-ABS31-BDA08223DS-C003-31-CV20-6 Specifications Operating pressure 0...4,5 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With moulded PVC-cable (2 m) Approval CE	220-230V/50-60Hz	RP 3"	80 mm	80 mm	See availability	1.255,60 €	Quantity Details Documents — SE01-30-BT81-ABS31-BDA08223DS-C003-31-CV20-6
SE01-30-BT81-ABS31-BDA08223DS-C003-32-LV-1 Specifications Operating pressure 0...4,5 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With integrated LED-yellow and VDR Approval CE	220-230V/50-60Hz	RP 3"	80 mm	80 mm	See availability	1.250,90 €	Quantity Details Documents — SE01-30-BT81-ABS31-BDA08223DS-C003-32-LV-1
SE01-30-BT1251-ABS31-BDA08024CS-C003-32-6 Specifications Operating pressure 0...13 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design Standard Approval CE	24VDC	RP 3"	80 mm	125 mm	See availability	1.743,20 €	Quantity Details Documents — SE01-30-BT1251-ABS31-BDA08024CS-C003-32-6
SE01-30-BT1251-ABS31-BDA08024CS-C003-31-CV20-6 Specifications Operating pressure 0...13 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With moulded PVC-cable (2 m) Approval CE	24VDC	RP 3"	80 mm	125 mm	See availability	1.753,30 €	Quantity Details Documents — SE01-30-BT1251-ABS31-BDA08024CS-C003-31-CV20-6
SE01-30-BT1251-ABS31-BDA08024CS-C003-32-LV-2 Specifications Operating pressure 0...13 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type DC Design With integrated LED-yellow and VDR Approval CE	24VDC	RP 3"	80 mm	125 mm	See availability	1.748,70 €	Quantity Details Documents — SE01-30-BT1251-ABS31-BDA08024CS-C003-32-LV-2
SE01-30-BT1251-ABS31-BDA08223DS-C003-32-6 Specifications Operating pressure 0...13 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design Standard Approval CE	220-230V/50-60Hz	RP 3"	80 mm	125 mm	See availability	1.743,20 €	Quantity Details Documents — SE01-30-BT1251-ABS31-BDA08223DS-C003-32-6
SE01-30-BT1251-ABS31-BDA08223DS-C003-31-CV20-6 Specifications Operating pressure 0...13 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With moulded PVC-cable (2 m) Approval CE	220-230V/50-60Hz	RP 3"	80 mm	125 mm	See availability	1.753,30 €	Quantity Details Documents — SE01-30-BT1251-ABS31-BDA08223DS-C003-31-CV20-6
SE01-30-BT1251-ABS31-BDA08223DS-C003-32-LV-1 Specifications Operating pressure 0...13 bar Control pressure 5...10 bar Medium temperature -30...+170 °C Voltage type AC Design With integrated LED-yellow and VDR Approval CE	220-230V/50-60Hz	RP 3"	80 mm	125 mm	See availability	1.748,60 €	Quantity Details Documents — SE01-30-BT1251-ABS31-BDA08223DS-C003-32-LV-1
