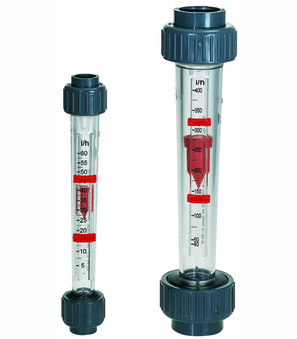

Flow meter Series FM06/FM07; Float PVDF; Female thread Malleable cast iron zinc plated; Scale for air at 0 bar/20°C; Pressure Max. 10bar; Mounting position Vertical pipe; Temperature range +5...+75°C; Application: Air; Connection 3/8"; Range 0,1...0,55Nm3/h; Measuring tube PSU
Country of origin: Germany
Weight: 0.19 Kg
Short Itemnumber: FM0638M0.55
flow meter series FM06/FM07; float PVDF; female thread malleable cast iron zinc plated; scale for air at 0 bar/20°C; pressure max. 10bar; mounting position vertical pipe; temperature range +5...+75°C; application: air; connection 3/8"; range 0,1...0,55Nm3/h; measuring tube PSU
Technical specifications
| Connection | 3/8" |
|---|---|
| Range | 0,1...0,55 Nm3/h |
| Measuring tube | PSU |
| Range 2bar/20°C | 0,17...0,9 Nm3/h |
| Connection | 3/8" |
| Range | 0,1...0,55 Nm3/h |
| Measuring tube | PSU |
| Range 2bar/20°C | 0,17...0,9 Nm3/h |
| Range 4bar/20°C | 0,25...1,2 Nm3/h |
| Range 6bar/20°C | 0,26...1,45 Nm3/h |
FM06-38-M-0,55
