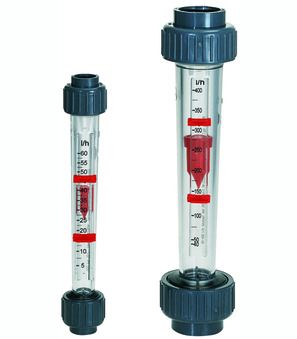

Flow meter Series FM06/FM07; Float PVDF; Female thread Malleable cast iron zinc plated; Scale for air at 0 bar/20°C; Pressure Max. 10bar; Mounting position Vertical pipe; Temperature range +5...+75°C; Application: Air; Connection 11/4"; Range 8...76Nm3/h; Measuring tube PA
Country of origin: Germany
Weight: 1.18 Kg
Short Itemnumber: FM07114M76
flow meter series FM06/FM07; float PVDF; female thread malleable cast iron zinc plated; scale for air at 0 bar/20°C; pressure max. 10bar; mounting position vertical pipe; temperature range +5...+75°C; application: air; connection 11/4"; range 8...76Nm3/h; measuring tube PA
Technical specifications
| Connection | 1 1/4" |
|---|---|
| Range | 8...76 Nm3/h |
| Measuring tube | PA |
| Range 2bar/20°C | 12...136 Nm3/h |
| Connection | 1 1/4" |
| Range | 8...76 Nm3/h |
| Measuring tube | PA |
| Range 2bar/20°C | 12...136 Nm3/h |
| Range 4bar/20°C | 16...177 Nm3/h |
| Range 6bar/20°C | 19...209 Nm3/h |
FM07-114-M-76
